Farm planting soil, bio infiltration soil, wetland soil, rain garden soil, horticultural subsoil trommel screen
Introduction of compost processing trommel
MTS series trommel screen machine is well known for its large processing capacity of compound fertilizer and farm compost. It is also a good choice for the classification of refractory materials, coal, sand , soil, grval, earth, sandstone block, limestone, metallic or non-metallic minerals,etc.

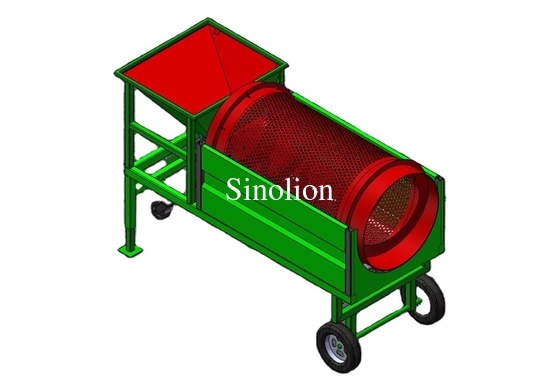

The structure of soil trommel
The main structure of trommel screen machine is sieving cylinder, which is composed of several circular shape of the screen.The whole and ground plane is in heeling condition.External sealed the isolation cover seal is to prevent the pollution of the environment. The speed reducing system enables the screening cylinder rotates at a certain speed.Thus the material is separated by sieving cylinder from top to bottom.Afterwards fine material is discharged from the lower front part of sieving cylinder.While coarse material discharged from the tail end of the screening cylinder.
Operation
(1) Smoothly operation and low noise.
(2) High powerful Screening ability, screened and washed widely and remarkable effects.
(3) The screening tube can be closed, easy to collect dust airtight.
(4)The high reliability and one-time investment is less.
Main technical parameters:
| Model | capacity(t/h) | power(kw) | screen diameter(mm) | screen length(mm) | volume(m³) | sieve square meters | shell dimension(m) |
| MTS0818 | <15 | 2.2 | 800 | 1800 | 0.4 | 3 | 1.2*0.8*0.8m |
| MTS1022 | <30 | 2.2 | 1000 | 2200 | 1.1 | 5.3 | 2*1.3*0.7m |
| MTS1230 | <60 | 4 | 1200 | 3000 | 2 | 8.3 | 2.35*1.6*0.88m |
| MTS1550 | <90 | 5.5 | 1500 | 5000 | 4.5 | 18.84 | 3*1.7*1m |
Frequent questions
Q1: How long is the delivery time?
A: It will takes about 7-10 days for delivery after pre-payment.
Q2: What is the driving force?
A: Japan Honda Gasoline Engine. The Honda Gasoline Engine could supply Environmental Protection Certificate.
Q3: How long is the warranty period A: One year
Q4: Do you have a certificate of origin, EU certification, etc. A: yes, of course
Q5: How many wheels does it have?
A: There are two and four rounds, according to customer requirements
