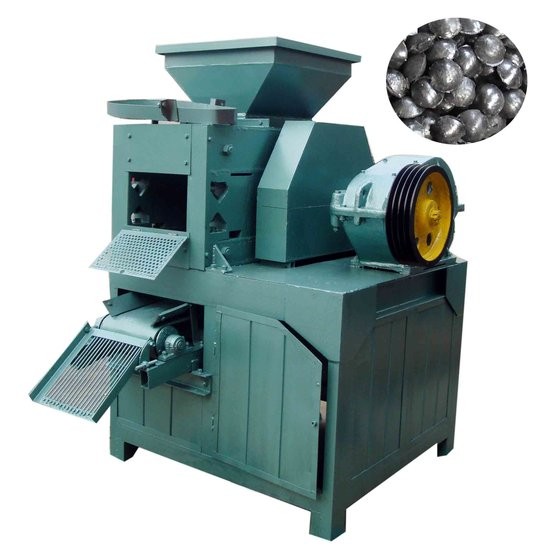

mineral powder briquetting machine
1, mineral powder briquetting machine description:
Ball press is a widely used in many range, this machine can press the raw materials for pelletize or press ball, such as aluminum powder, active carbon, aluminum oxide, bauxite, causticity sodium, charcoal, clay ,braize ,coal, cryolite, chemical fertilizer, plastic, lime stone, pigment, urea, etc.Our balls press machine series can mould different kinds of mineral powder into (Φ6-50mm) briquettes and the shape can be round,oval, pillow,rectangle,square shapes,just taper by changing moulds.The finished products' surface is very smooth, also the pressure and density can be adjustable.
2, Work principle of mineral powder briquetting machine:
This series of Coal ball type pressure machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
3.Mainly Technical Parameter of mineral powder briquetting machine:
|
Model |
Diameter and raw materials of roller sheet (mm) |
Motor Power (KW) |
Weight (Kg) |
Capacity (T/H) |
|
290 Ball Press |
290; 65Mn |
5.5 |
1300 |
1-3 |
|
360 Ball Press |
360; 65Mn |
7.5 |
1850 |
4-6 |
|
430 Ball Press |
430; 65Mn |
11 |
2300 |
6-8 |
|
450 Ball Press |
450; 65Mn |
13 |
3000 |
8 |
|
500 Ball Press |
500;65Mn |
18.5 |
4500 |
8-10 |
|
650 Ball Press |
650; 65Mn |
25 |
5000 |
10-12 |
|
850 Ball Press |
850; 65Mn |
30 |
5300 |
15-18 |
|
1000 Ball Press |
1000; 65Mn |
55 |
6900 |
20-25 |
Rollers
