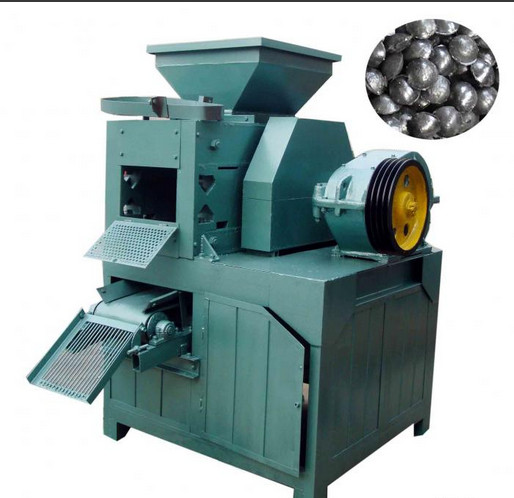

1.coal briquetting machine with high quality and efficiency.
2.Long service life.
3.Low-consumption,energy saving.
coal briquetting machine is mainly used for high-density metal scrap (scrap iron, copper scrap, aluminum scrap, etc.), granular powder metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.) , metallurgical additives, sponge iron, etc., without adding any binder pressed into the case of cylindrical cakes of high-density block (weight 2-8 kg), the cake density of up to 5T/M3 block above (the different raw materials, press out the cake block density and not quantity is not the same), pressed into the cake pieces can be directly cast furnace use.
Features:
coal briquetting machine
1. High quality and efficiency
2. Long Service life
3. Low-consumption,energy saving
Working Principle
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
coal briquetting machine Main Technical Parameter:
|
Model |
Reducer |
speed ratio |
The dimension of pressing roll |
speed of main shaft(r/min) |
Power of motor (kw) |
Output (t/h) |
|
YHQ360-4 |
ZQ350 |
1:31.5 |
Φ360*250 |
15-17 |
7.5 |
3-5 |
|
YHQ360-2 |
ZQ350 |
1:31.5 |
Φ360*250 |
15-17 |
7.5 |
3-5 |
|
YHQ400-4 |
ZQ400 |
1:31.5 |
Φ400*250 |
15-17 |
11 |
4-7 |
|
YHQ400-2 |
ZQ400 |
1:31.5 |
Φ400*250 |
15-17 |
7.5 |
4-7 |
|
YHQ430-4 |
ZQ400 |
1:31.5 |
Φ430*250 |
15-17 |
11 |
5-8 |
|
YHQ430-2 |
ZQ400 |
1:31.5 |
Φ430*250 |
15-17 |
7.5 |
5-8 |
|
YHQ500-4 |
ZQ500 |
1:31.5 |
Φ500*350 |
15-17 |
22 |
8-10 |
|
YHQ500-2 |
ZQ500 |
1:31.5 |
Φ500*350 |
15-17 |
15 |
8-10 |
|
YHQ650-4 |
ZQ650 |
1:31.5 |
Φ650*350 |
15-17 |
30 |
12-20 |
|
YHQ650-2 |
ZQ650 |
1:31.5 |
Φ650*350 |
15-17 |
22 |
12-20 |
|
YHQ750-4 |
ZQ750 |
1:31.5 |
Φ750*380 |
14-16 |
30 4
|
25-30 |
|
YHQ850-4 |
ZQ850 |
1:31.5 |
Φ850*436 |
14-16 |
37 |
35-40 |
|
YHQ1000-4 |
ZQ1000 |
1:31.5 |
Φ1000*530 |
14-16 |
45 |
40-45 |
PLS NOTICE:
Yonghua Machinery has many type high briquette ratio coal briquette press machine ,if you have any kinds of raw material and want to make them into briquettes ,please contact me freely.we will provide you a competitive price and excellent machine ,sincerely waiting for your inquiry.
