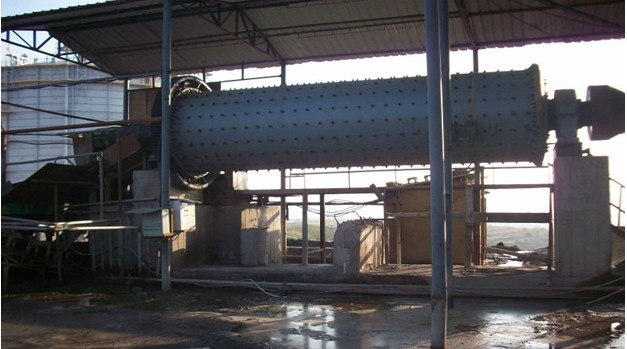

Best price small ball mill for sale
Specifications
1) Reduce energy consumption by 30%
2) High capacity ball mill
3) The latest production technology
4) ISO9000:2008
Small Ball mill application scope:
Small Ball Mill is a key equipment to grind all kinds of ores and other materials.Which is widely used powder-making. production line including cement, silicate, new-type building material, refractory material,fertilizer,ore dressing of ferrous metal and non-ferrous metal,glass ceramics,et
Small Ball mill features:
1)New type on improved on the old type 2) Large diameter double roe self-aligning roller bearings
3) The whole rack, easy to install 4) By adopting an integral steel under-frame,installation precision is high.
Small Ball mill main parameters
|
Model |
Cylinder rotary speed (r/min) |
Loading ball weight (t) |
Input size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
|
Ø900×1800 |
39 |
1.5 |
≤20 |
0.075-0.89 |
0.8-2 |
18.5 |
4.6 |
|
Ø900×3000 |
39 |
2.7 |
≤20 |
0.075-0.89 |
1-4 |
22 |
5.6 |
|
Ø1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ø1200×4500 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ø1500×3000 |
27 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
|
Ø1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
|
Ø1830×3000 |
25 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
|
Ø1830×6400 |
24 |
21 |
≤25 |
0.074-0.4 |
7-16 |
210 |
34 |
|
Ø1830×7000 |
24 |
23 |
≤25 |
0.074-0.4 |
8-18 |
245 |
36 |
|
Ø2100×3600 |
23 |
19 |
≤25 |
0.074-0.4 |
10-36 |
210 |
46 |
|
Ø2200×4500 |
21 |
27 |
≤25 |
0.074-0.4 |
12-23 |
280 |
48.5 |
|
Ø2200×6500 |
21 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Ø2200×7000 |
21 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
|
Ø2200×7500 |
21 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
|
Ø2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
18-45 |
320 |
65 |
|
Ø2400×8000 |
20 |
36 |
≤25 |
0.074-0.4 |
20-48 |
410 |
81 |
|
Ø2700×3600 |
21 |
39 |
≤25 |
0.074-0.4 |
19-75 |
400 |
83 |
|
Ø2700×4000 |
20 |
40 |
≤25 |
0.074-0.4 |
20-78 |
400 |
85 |
|
Ø2700×4500 |
20 |
48 |
≤25 |
0.074-0.4 |
22-85 |
430 |
89 |
|
Ø3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
29-140 |
800 |
137 |
|
Ø3200×5400 |
18 |
81.6 |
≤25 |
0.074-0.4 |
30-180 |
800-1000 |
146 |
|
Ø3600×4500 |
17 |
88 |
≤25 |
0.074-0.4 |
35-210 |
1000 |
190 |
|
Ø3600×6000 |
17 |
117 |
≤25 |
0.074-0.4 |
38-240 |
1250-1500 |
220 |
|
Ø3600×8500 |
17 |
144 |
≤25 |
0.074-0.4 |
45-260 |
1800 |
260 |
