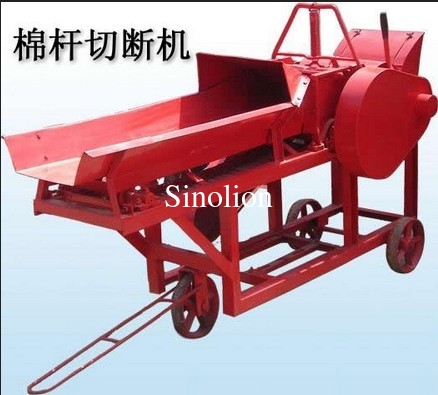

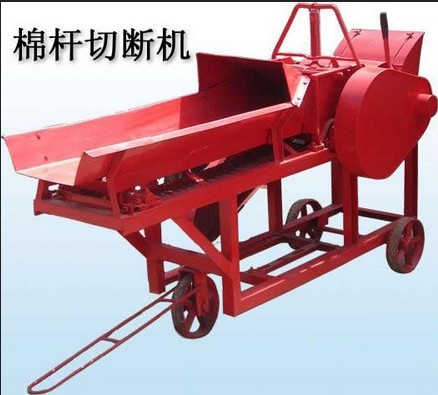

Cotton stalk cutting machine
1. Introduction of cotton stalk cutting machine
Cotton stalk cutting is used for plant stalks, cut crop straw processing machinery and equipment.It is also known as the cotton rod mill; But cotton stalk shredders can not be called cotton stalk cutter; Cotton rod mill is the first, and then we use the crushing cavity device. Cotton stalk cutter just cut; cotton rod mill is mainly used for large timber hardness of not more than 3 cm in diameter branches of branch, crushed cotton stalks off, the next step in favor of timber mill processing, and cotton stalk cutting machine generally used for plant stalks, cut crop straw processing, use as pigs, cattle, horses, sheep fodder.
2.Principle:The device will be processed through the delivery of material transported to crushing cavity cut in the interaction by high speed rotation of the hammer and rub board , the material is cut by the cutting and polishing material leaves air to an outdoor parabolic
3.Main parameters of cotton stalk cutting machine:
|
Model |
9JZ-50 |
9JZ-35 |
|
Overall size(L*W*H) |
2800*900*1500mm |
2300*700*1200mm |
|
Motor power |
22kw |
15kw |
|
Speed |
500r/min |
500r/min |
|
Cutting length |
2-5mm |
15-30mm |
|
Throwing distance |
7m |
5m |
|
Weight |
500kg |
360kg |
|
Capacity(t/h) |
2-2.5t |
1.5-2t |
4. Note:
