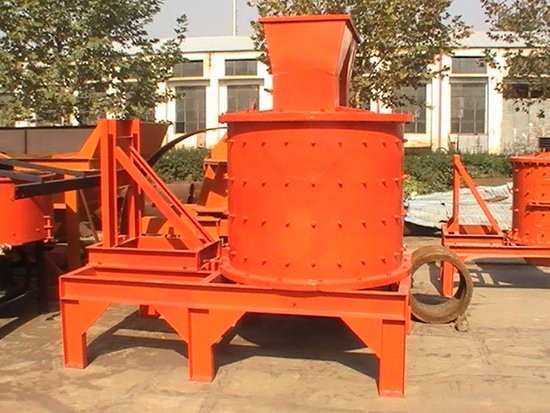

Ore crusher -- vertical combination crusher
Application
The vertical combination crusher is a new type of fine crushing and rough milling product after optimizing and designing the main technical parameter and combining the domestic and international crushing technologies. It is mainly used to crush crude cement materials and grogs in medium–sized factory, providing an ideal fine crushing equipment for the technological innovation of cement factories or setting up the cement production line. It is also applicable for crushing iron ore, sandstone, gypsum, blast furnace residue, coal stone, piece coal, and many other ores of medium hardness, characterized by the large crushing ratio, little energy consumption, stable run, simple structure, and convenient maintenance and operation.
Features
This series of vertical combination crusher is promoted on the basis of the same kind of crusher which adopts technology of home and aboard , optimizes the main technical data . As a new type crusher of fine crushing and coarse milling , it is suitable for medium cement industry . It is widely used to improve old cement factory and establish new cement factory , also can be used to crush iron ore , sand rock , clinker , gypsum, block coal and other medium-hard material. It has features like : simple structure , large crushing ratio , high capacity , even particles , convenient maintenance , low production cost and so on .
Main parameters of the vertical combination crusher:
|
Model. |
Capacity (t/h) |
Feeding Size (mm) |
Discharging Size(mm) |
Motor (kw) |
Dimension L×W×H(mm) |
Weight (t) |
|
PFL-750 |
15-25 |
Less than 100 |
Less than 3-5 60-90% |
30 |
2180×1210×1700 |
3.8 |
|
PFL-750A |
15-25 |
Less than 100 |
Less than 3 90% |
30 |
2180×1210×1700 |
3.8 |
|
PFL-1000 |
20-40 |
Less than 120 |
Less than 3-5 60-90% |
55 |
2600×1530×1940 |
5.8 |
|
PFL-1000A |
20-40 |
Less than 120 |
Less than 3 90% |
55 |
2600×1530×1930 |
5.5 |
|
PFL-1250 |
40-70 |
Less than 150 |
Less than 3-5 60-90% |
75 |
2970×1850×2042 |
8.2 |
|
PFL-1250A |
40-70 |
Less than 150 |
Less than 3 90% |
75 |
2920×1850×1950 |
8.6 |
|
PFL-1500 |
70-100 |
Less than 180 |
Less than 3-5 60-90% |
95 |
3420×2240×2200 |
13.7 |
|
PFL-1500A |
70-100 |
Less than 180 |
Less than 3 90% |
95 |
3310×2240×2250 |
13.7 |
