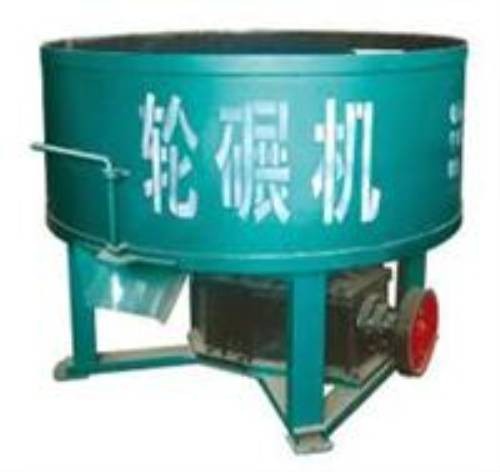

Multifunction Grinding Mill:
Introduction:
Wheel grinding mixer, apply to mixing solid material and liquid amterial in casting workshop, widely applied in various kinds of forming production line. It is a kind of ideal mixing equipment can be easily used in chemical industry, light industry, building materials, and other industries mixing with powder materials. Especially it is the ideal mix equipment of various kinds of materials briquette production line.
Main parameters:
|
Model |
Barrel Dia. (mm) |
Wheel Size (mm) |
In Capacity (kg) |
Stir time (min/time) |
Spindle speed (r/min) |
Power (KW) |
Capacity (T/H) |
Weight (T) |
|
S110 |
1000 |
420*130 |
110 |
3-5 |
44 |
4 |
1-2.2 |
0.92 |
|
S112 |
1450 |
590*117 |
200 |
3-5 |
34.7 |
7.5 |
2-4 |
1.6 |
|
S114 |
1820 |
750*240 |
300-500 |
3-5 |
34 |
15 |
6-10 |
3.5 |
|
S120 |
2200 |
800*260 |
1000 |
3-5 |
30 |
37 |
10-15 |
5.6 |
