Continuous drying charcoal balls pellets conveyor briquettes dryer

1set
MOQ
10000USD-25000USD
Price
Continuous drying charcoal balls pellets conveyor briquettes dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V 50HZ,380V/220V,380V/50HZ
Power(w): Based
Condition: New
Weight: 2.9-104.9t
Warranty: 1 Year
Type: Vacuum Drying Equipment
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available
Dimension(l*w*h): Varied
Application: Food Processing,Medicine Processing,Pharmaceutical
Name: Creative Lab Vacuum Drying Oven Equipment With Ce Certificated
Capacity: 0.5-45T/H
Installation: Under Technician's Guidance,Engineer Guide
Color: Customized
Heating Source: Electricity / Coal / Natural Gas / Diesel
Material: SS304/SS316L,Q235,Stainless Steel
Raw Material: Carbon Steel
Usage: Reduce Material's Moisture
Basic Infomation
Place of Origin: Henan Province, China
Brand Name: Sinolion
Certification: ISO
Model Number: 11.5m*3layers
Payment & Shipping Terms
Packaging Details: standard container
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10sets per month
Product Description

Continuous drying charcoal balls pellets conveyor briquettes dryer





Specifications of Briquettes Dryer

Hot selling mesh belt dryer for charcoal balls dryer system
1.small space to take
2.high efficiency
3.standardized product

Briquettes Dryer Applications :

The hot selling mesh belt machine is a kind of drying equipment for batch, continuous production.

It is mainly used for drying plate ,strip ,and granular materials with better ventilation.The dryer is applicable to food products as well.

Briquettes Dryer working principle

The conveyor directly transports finished balls to the pallet conveyor, and the scraping plate on the upper

end of the pallet conveyor arranges these balls evenly on the dryer, improving ventilation property of balls,

achieving drying effect, ensuring continuous production of all equipment.

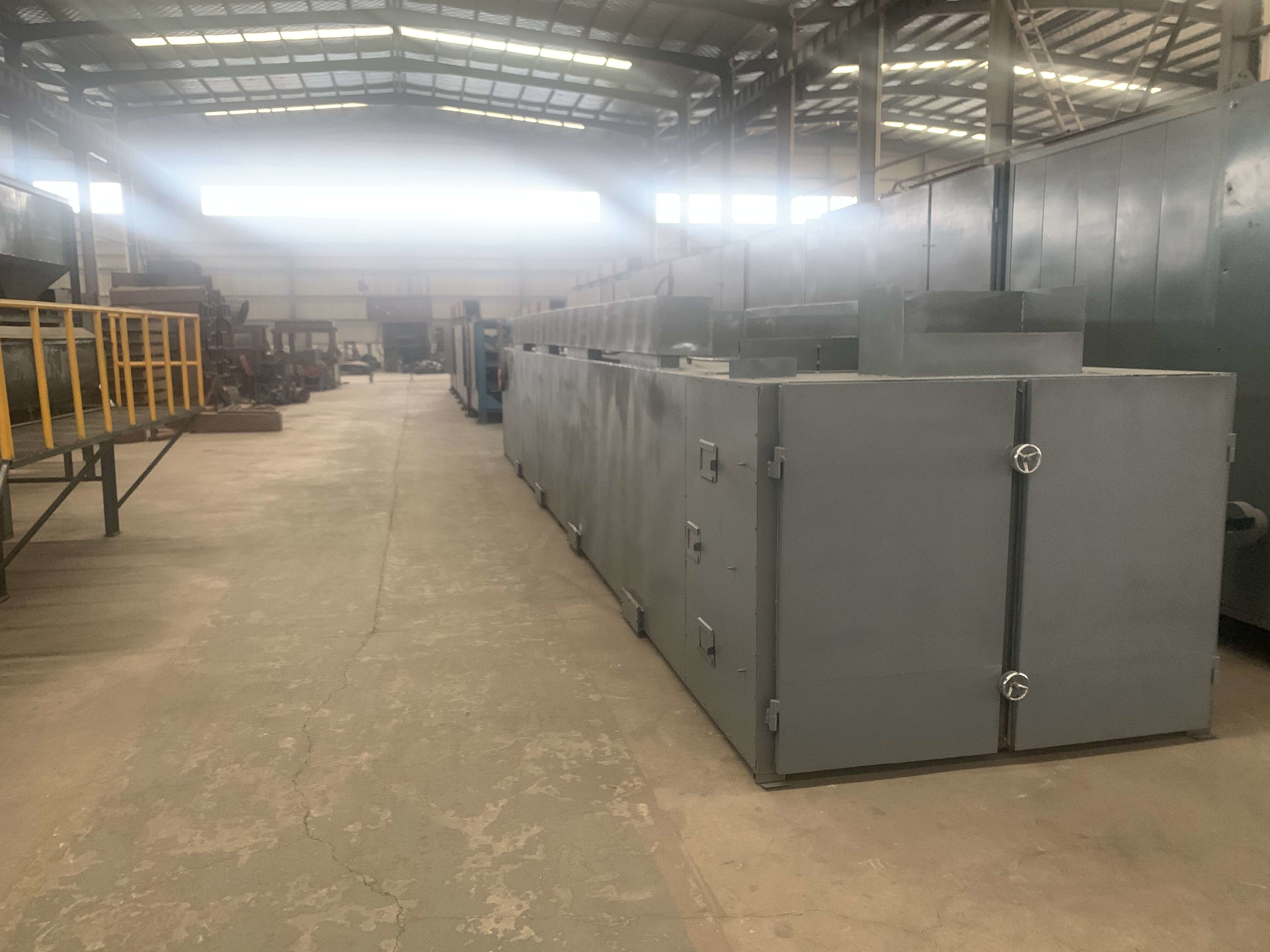

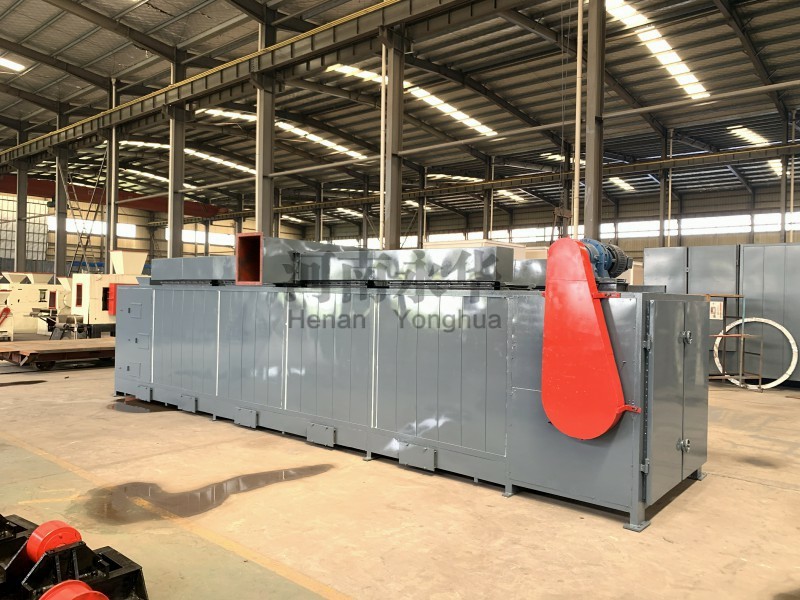

Continuous drying charcoal balls pellets conveyor briquettes dryer 0



Main parameters of Briquettes Dryer:

Model

Dimensions

(m)

Effective dryer length (single)

(m)

Width

(m)

Motor Model

Motor Power

(kw)

Capacity

(t/h)

20m*3layers

21.27*2.44*3.016

20

1.9

YCT200-4B

7.5

6-10

40m*3layers

42.35*2.44*3.016

40

1.9

YCT225-4A

11

12-16

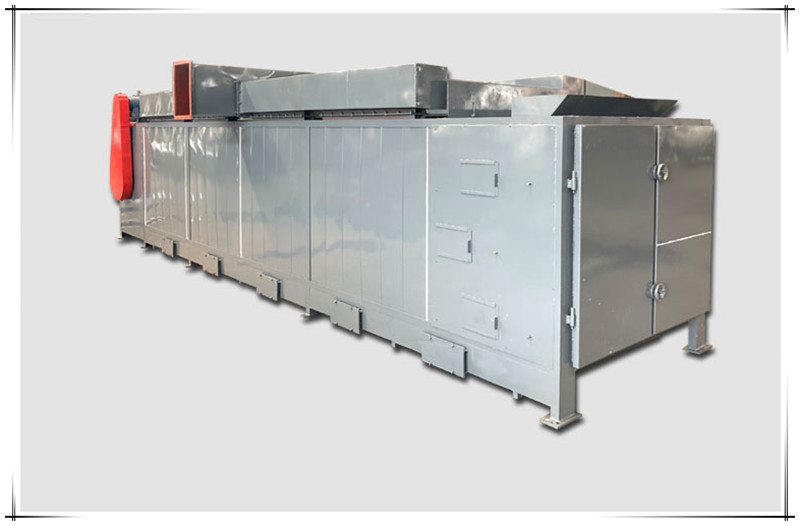

Continuous drying charcoal balls pellets conveyor briquettes dryer 1
