Coke briquettes round ball pillow charcoal coal briquettes mesh belt dryer conveyor continuous dryer
Introduction of the briquettes dryer

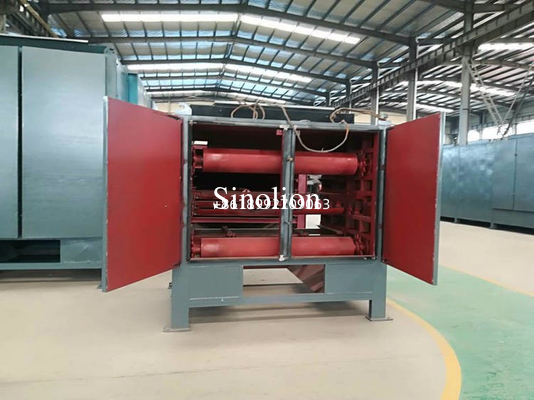

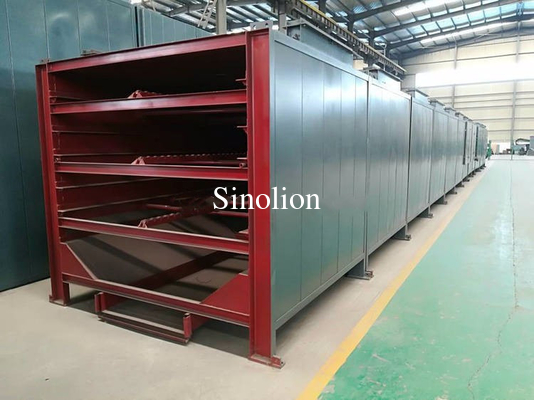

Mesh belt dryer is composed by the main frame, tail frame, the way among frame, traction chain, nets chain, guide, automatic tensioning device,automatic heating equipment components. The material is the top charging hopper dryer with upper net belt into the dryer, the net belt running smoothly to the dryer, along the chute into the lower, and then back to the machine head, and so on, and the material in the hot air under the baking, gradually dry, by the tail department is sent out.
Specifications of Briquettes Dryer
Hot selling mesh belt dryer for charcoal balls dryer system
1.small space to take
2.high efficiency
3.standardized product
Briquettes Dryer Applications :
The hot selling mesh belt machine is a kind of drying equipment for batch, continuous production.
It is mainly used for drying plate ,strip ,and granular materials with better ventilation.The dryer is applicable to food products as well.
Briquettes Dryer working principle

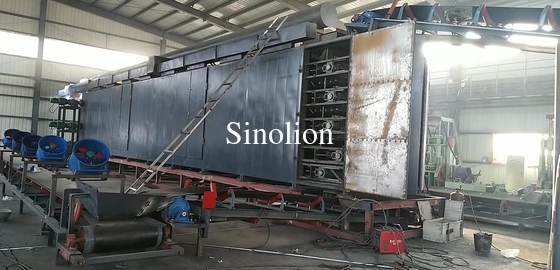

The conveyor directly transports finished balls to the pallet conveyor, and the scraping plate on the upper
end of the pallet conveyor arranges these balls evenly on the dryer, improving ventilation property of balls,
achieving drying effect, ensuring continuous production of all equipment.
Main parameters of Briquettes Dryer:
|
Model |
Dimensions (m) |
Effective dryer length (single) (m) |
Width (m) |
Motor Model |
Motor Power (kw) |
Capacity (t/h) |
|
20m*3layers |
21.27*2.44*3.016 |
20 |
1.9 |
YCT200-4B |
7.5 |
6-10 |
|
40m*3layers |
42.35*2.44*3.016 |
40 |
1.9 |
YCT225-4A |
11 |
12-16 |
Our service
1. Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
2. Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
