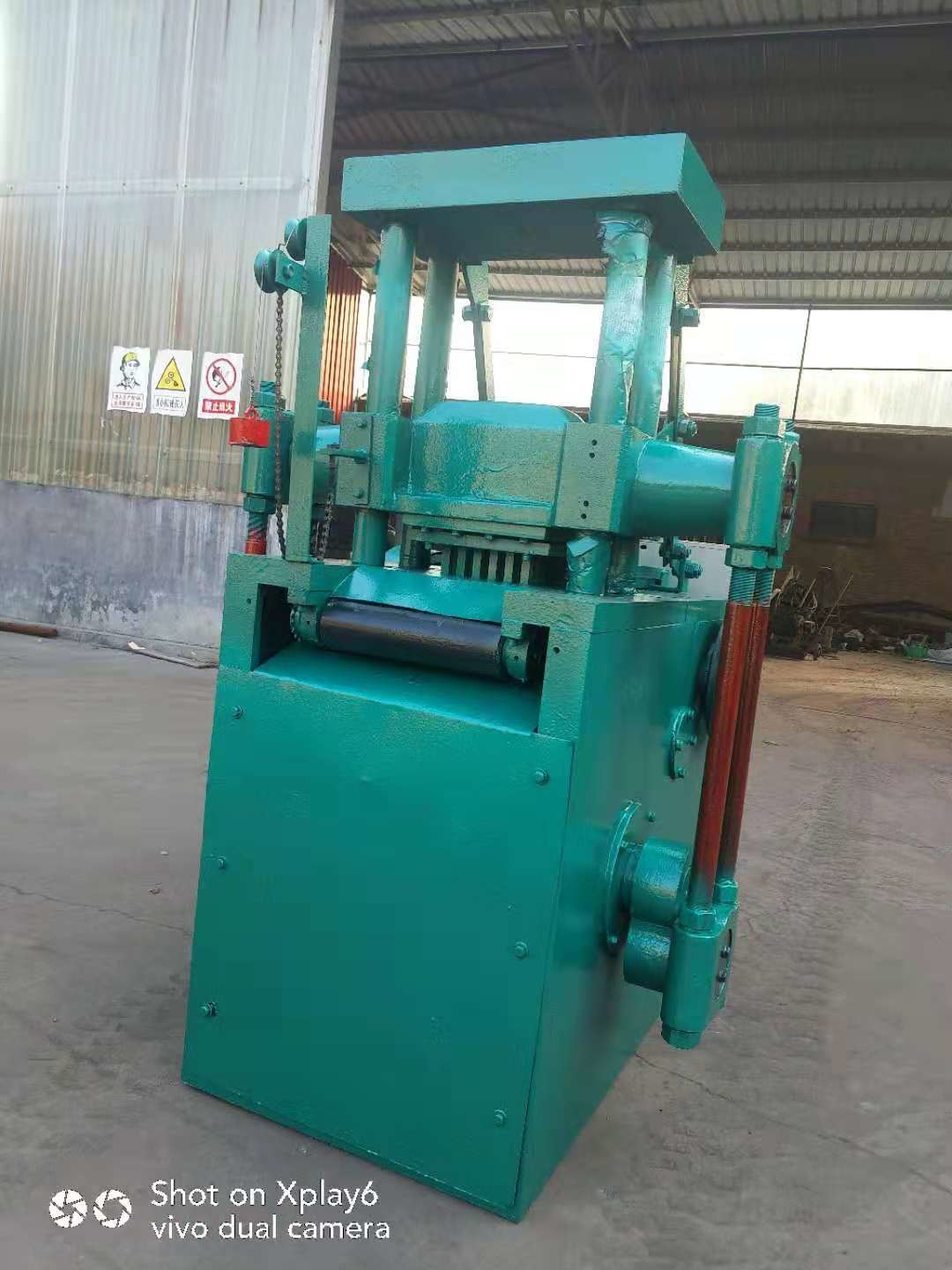

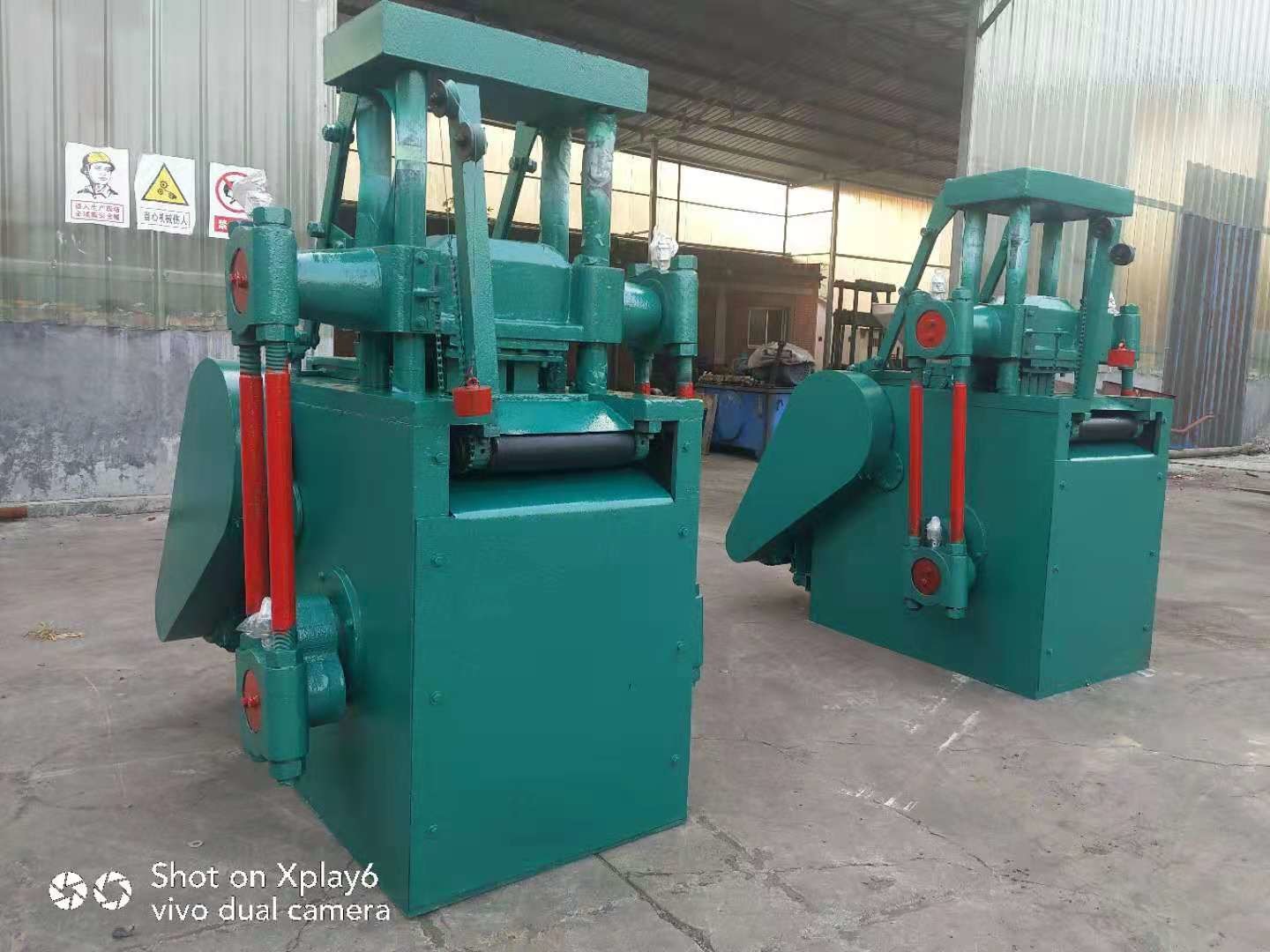

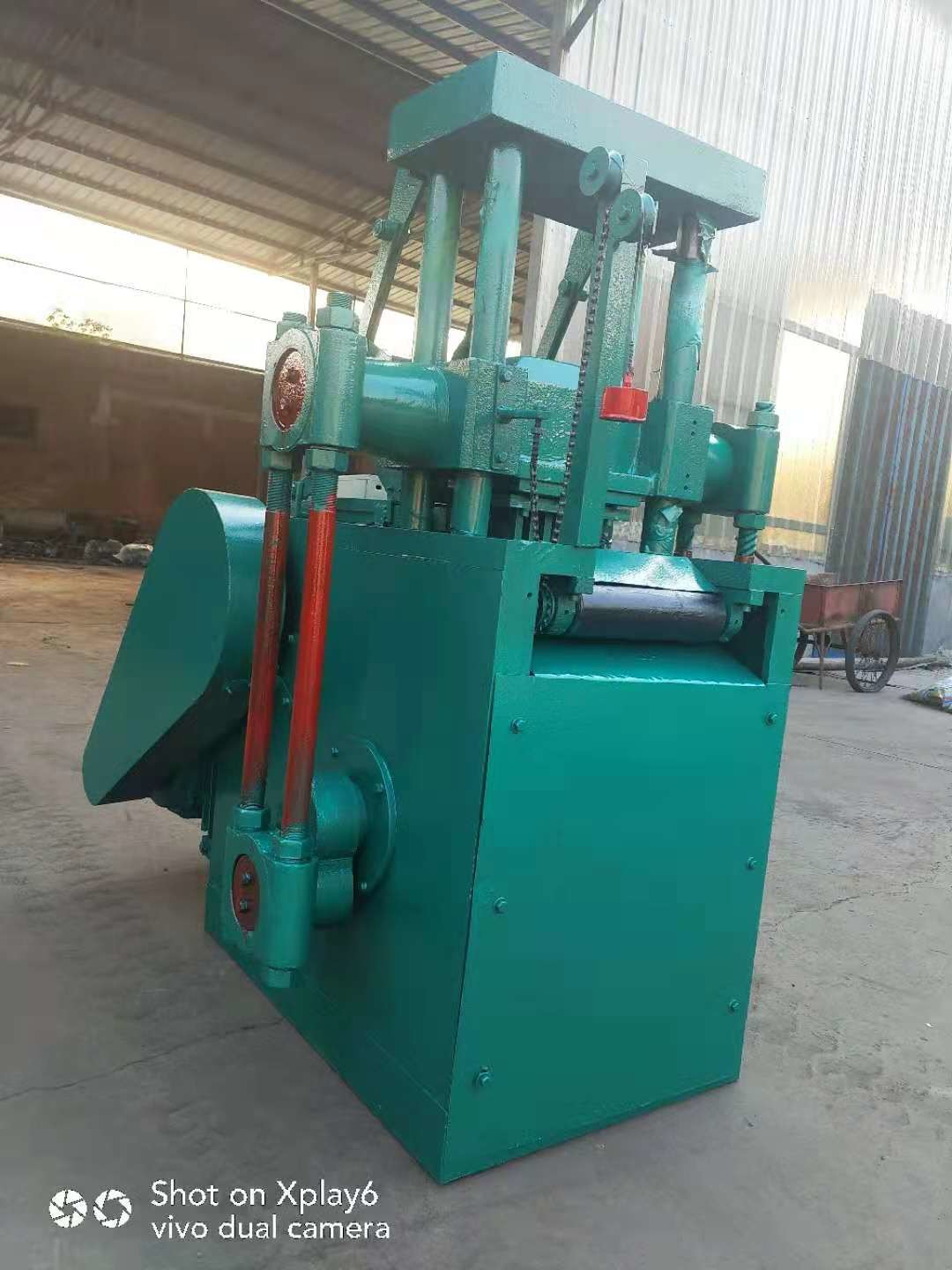

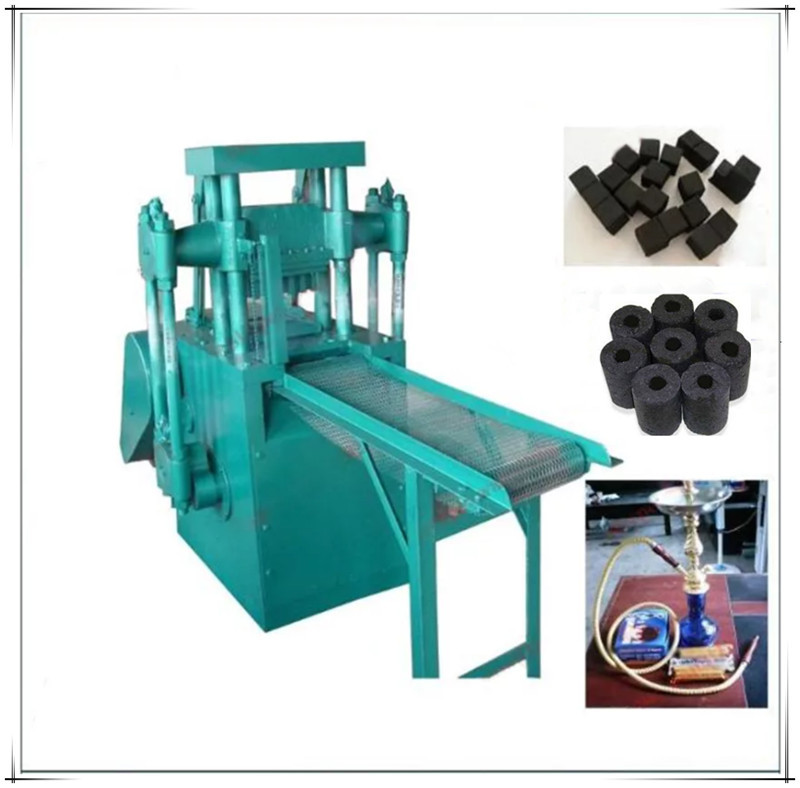

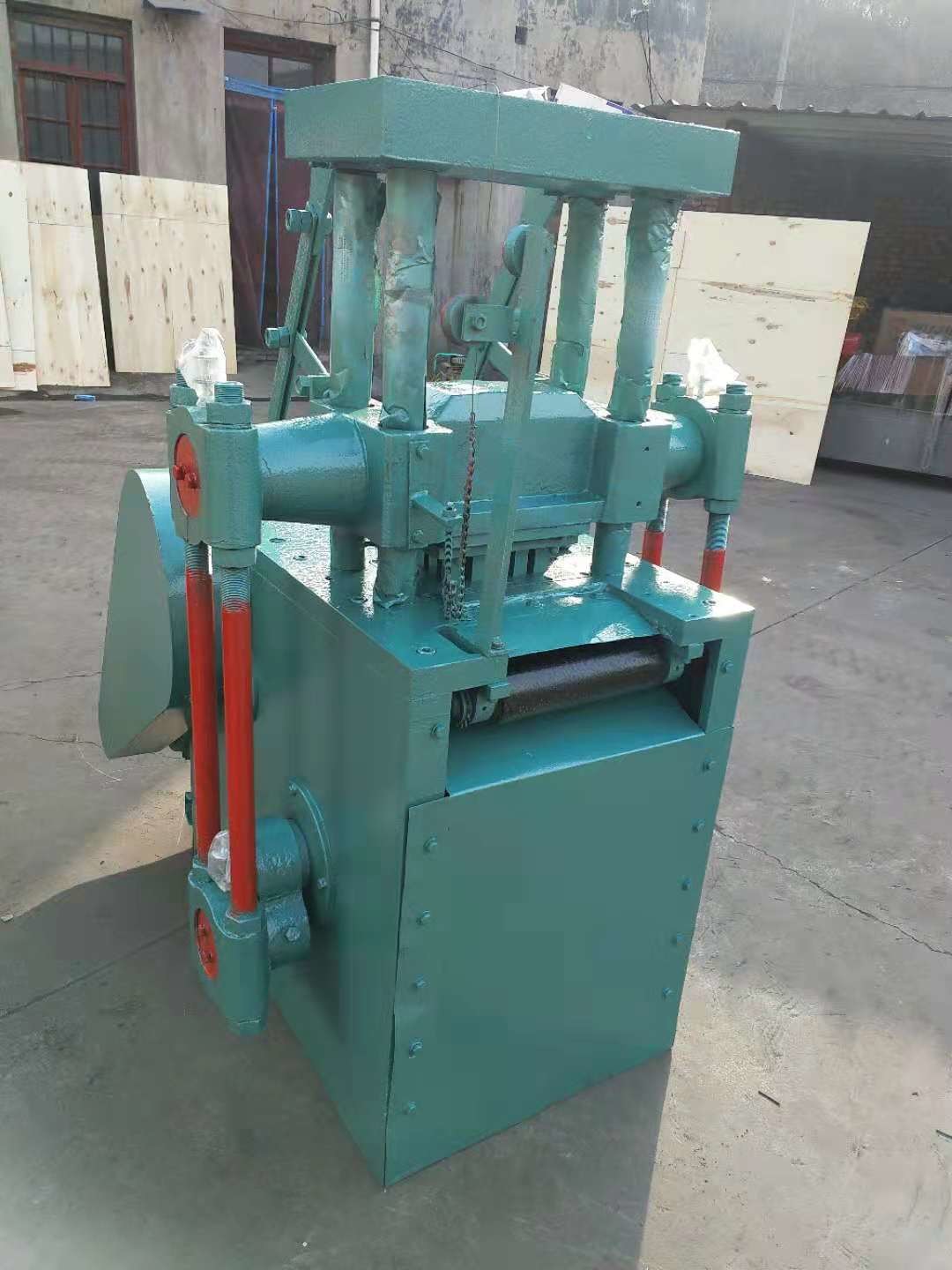

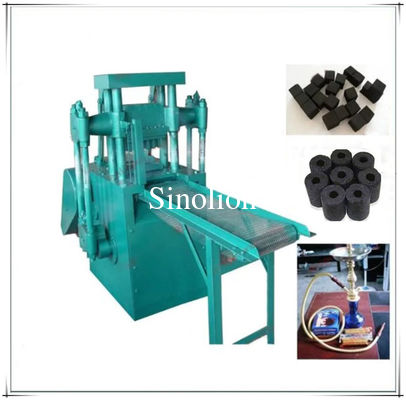

25*25*25mm cube shisha briquettes charcoal press briquette making machine
Brief Introduction:
Shisha charcoal briquette machine production of charcoal powder tablet press, hookah carbon tablet press, silver charcoal tablet press, powder pelleting machine, mineral powder, powder tablet press machine, food, pharmaceutical tablet press machine, chemical fertilizer, feed pelleting machine, plastic machine, ceramic tablet press and other large and medium-sized tablet press equipment. The series of tablet press is suitable for all kinds of dry and wet powder granular materials, such as water smoke carbon, carbon, silicon carbide, carbon powder, charcoal powder, coal, coking coal, eggs, greenhouses, smoke agent, solid wax, solid alcohol, solid fuel, urea, chemical fertilizer, feed, the liquid to powder, ammonium chloride, furfural residue, rare earth, bauxite, scale, lime powder, dust, bleaching powder, iron essence pink all kinds of metal mineral powder and so on pressure molding.
molds and main machine.
Main parameters:
| Model | SBJ-9 | SBJ-48 |
| Applicable materials | charcoal powders, coal powders, sawdust, any powders materials | |
| Capacity |
11-16 pieces / time 20-40 times/min |
48 Pieces per Time (30 mm) 8-20 times/min |
| Motor | 7.5 kw (4 pole) | 18.5kw (4 pole) |
| Diameter of briquettes |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
| Feeding materials | < 3 mm | < 3 mm |
| Briquettes shape |
Round shape and Cubic shape Or as customers’ request |
Round shape and Cubic shape Or as customers’ request |
| Pressure | 40-60tons(adjustable) | 40-150tons |
| Press type | Mechanical Press | Hydraulic Press |
| Overall size |
2500x 950x1550 mm (includes conveyor) |
3500*2000*1800mm (includes conveyor) |
| Packing size | 1500x1200x1750 mm | 2100*2100*1900mm |
| Weight | 1500 KG | 5500kg |
Festures:
(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.
1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.
Application:
The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.
Shape and size
