Shishia Hookah Cube 22*22*22mm Charcoal Barhook Charcoal Briquette Making Machine
Brief Introduction:
This shisha hookah charcoal briquette making machine is used to make briquettes in charcoal, medicine, food,industry processing area. It is automatic, which can make the powder into briquettes with different shape as customer’s requirements .
It is designed as the GMP standard, with the stainless steel externality, the non-obstacle operation and maintain, the smart figuration , the security alarm system and noiseless feature.
Main parameters:
| Model | SBJ-9 | SBJ-48 |
| Applicable materials | charcoal powders, coal powders, sawdust, any powders materials | |
| Capacity |
11-16 pieces / time 20-40 times/min |
48 Pieces per Time (30 mm) 8-20 times/min |
| Motor | 7.5 kw (4 pole) | 18.5kw (4 pole) |
| Diameter of briquettes |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
| Feeding materials | < 3 mm | < 3 mm |
| Briquettes shape |
Round shape and Cubic shape Or as customers’ request |
Round shape and Cubic shape Or as customers’ request |
| Pressure | 40-60tons(adjustable) | 40-150tons |
| Press type | Mechanical Press | Hydraulic Press |
| Overall size |
2500x 950x1550 mm (includes conveyor) |
3500*2000*1800mm (includes conveyor) |
| Packing size | 1500x1200x1750 mm | 2100*2100*1900mm |
| Weight | 1500 KG | 5500kg |
Festures:
(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.
1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.
Application:
The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.

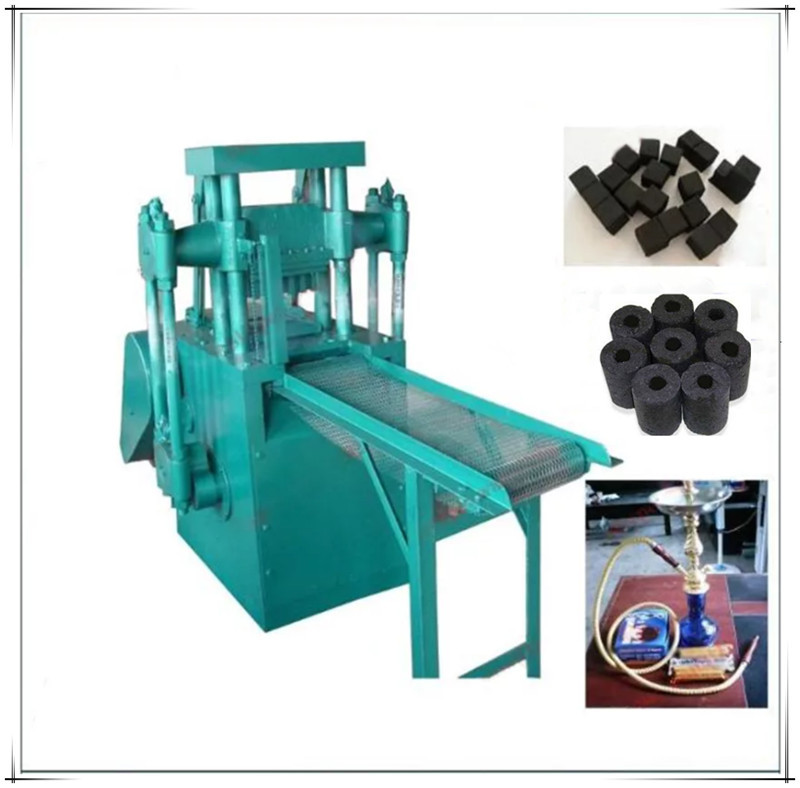

Shape and size
