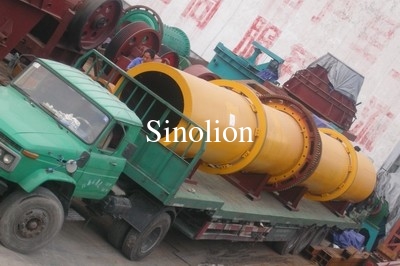

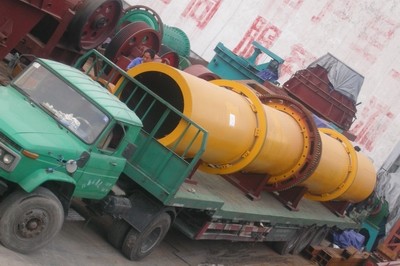

rotary driers / maizse driers / drier for cassava:
1. Structure of rotary drier
Drier also named as Drying Machine and Rotary Drier.Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc
2. Application of rotary drier
Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries.
3. Working principle of rotary drier
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
4. Whole set rotary dryer equipments
feeder, bucket elevator, rotary dryer,dust collector, heat resource
5. Technical Parameter:
|
Model |
Basic Parameters |
Power(kw) |
Production Capacity(t/h) |
Weight |
|||||||
|
Inner Diameter |
Length(m) |
Gradient |
Rotate Speed |
||||||||
|
Φ0.6x6 |
0.6 |
6 |
5.0 |
3-8 |
3 |
0.5-2.0 |
2900 |
||||
|
Φ0.8x8 |
0.8 |
8 |
5.0 |
3-8 |
4 |
0.8-2.5 |
3500 |
||||
|
Φ0.8x10 |
0.8 |
10 |
5.0 |
3-8 |
4 |
1.0-3.5 |
4500 |
||||
|
Φ1.0x10 |
1.0 |
10 |
5.0 |
3-8 |
5.5 |
1.5-6 |
5600 |
||||
|
φ1.2×6 |
1.2 |
6 |
5.0 |
5.8 |
5.5 |
8 |
9380 |
||||
|
Φ1.2x8 |
1.2 |
8 |
5.0 |
5.8 |
5.5 |
12 |
10200 |
||||
|
φ1.5×12 |
1.5 |
12 |
5.0 |
4.8 |
15 |
12 |
16450 |
||||
|
Φ1.5x15 |
1.5 |
15 |
5.0 |
4.8 |
15 |
16 |
18240 |
||||
|
φ1.8×12 |
1.8 |
12 |
5.0 |
4.5 |
18.5 |
18 |
20000 |
||||
|
Φ1.8x14 |
1.8 |
14 |
5.0 |
4.5 |
18.5 |
20 |
21000 |
||||
|
φ2.2×12 |
2.2 |
12 |
5.0 |
4.3 |
22 |
22 |
37100 |
||||
|
Φ2.2x14 |
2.2 |
14 |
5.0 |
4.3 |
22 |
28 |
38830 |
||||
