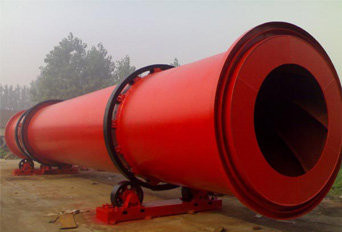

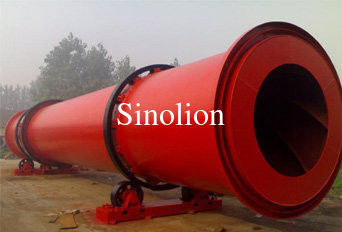

Coal Slime Rotary Dryer
Specifications
1.Negotiable price
2.Customized products
3.Suitable for limestone,lignite etc.
4.Highest inlet air temperature:700-800
Coal Slime Rotary dryer
Application:
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials.
Working principle:
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Technical parameter:
|
Specification(Diameter*Length)(m) |
Shell cubage(m3) |
Capacity(t/h) |
Installation obliquity(%) |
Highest inlet air temperature(°c) |
Main motor(kw) |
|
Φ1.2*8.0 |
9.0 |
1.9-2.4 |
3-5 |
700-800 |
7.5 |
|
Φ1.2*10 |
11.3 |
2.4-3.0 |
3-5 |
700-800 |
7.515 |
|
Φ1.5*12 |
21.2 |
4.5-5.7 |
3-5 |
700-800 |
15 |
|
Φ1.5*15 |
26.5 |
5.7-7.1 |
3-5 |
700-800 |
15 |
|
Φ1.8*12 |
30.5 |
6.5-8.1 |
3-5 |
700-800 |
18.5 |
|
Φ1.8*14 |
35.6 |
7.6-9.5 |
3-5 |
700-800 |
18.5 |
|
Φ2.2*12 |
45.6 |
9.7-12.2 |
3-5 |
700-800 |
22 |
|
Φ2.2*14 |
53.2 |
11.4-14.2 |
3-5 |
700-800 |
22 |
|
Φ2.2*16 |
60.8 |
13.0-16.2 |
3-5 |
700-800 |
22 |
|
Φ2.4*14 |
63.3 |
13.5-16.9 |
3-5 |
700-800 |
37 |
|
Φ2.4*18 |
81.4 |
17.4-21.7 |
3-5 |
700-800 |
37 |
|
Φ2.4*22 |
99.5 |
21.2-26.5 |
3-5 |
700-800 |
45 |
|
Φ2.6*24 |
127.4 |
27.2-34.0 |
3-5 |
700-800 |
55 |
|
Φ3.0*20 |
141.3 |
30.1-37.7 |
3-5 |
700-800 |
75 |
|
Φ3.2*25 |
201 |
42.9-53.6 |
3-5 |
700-800 |
90 |
|
Φ3.6*28 |
285 |
60.8-76.0 |
3-5 |
700-800 |
160 |
