Factory sale industrial rotary dryer -CE,ISO approval
Specifications
High efficiency, save energy
Our dryer is applied in mining, chemical, construction area
one step professional service
Product Description
Application of rotary dryer
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials.
Working principle of rotary dryer

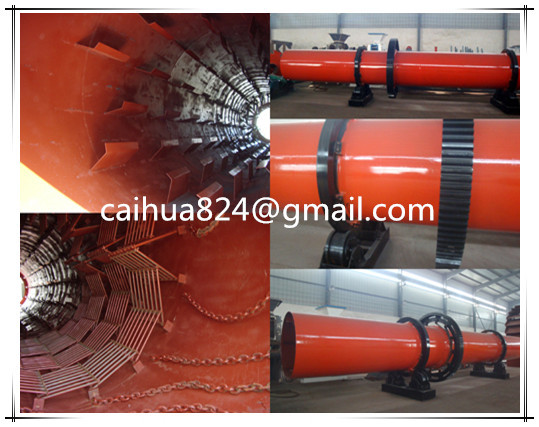

Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
|
lope(%) |
rotation speed(r/min) |
input temperature(º C) |
motor power(kw) |
output(t/h) |
weight(t) |
|
|
Φ 600× 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
2.9 |
|
Φ 800× 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
3.5 |
|
Φ 800× 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
4.5 |
|
Φ 1000× 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
5.6 |
|
Φ 1200× 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
14.5 |
|
Φ 1200× 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
14.8 |
|
Φ 1500× 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
17.8 |
|
Φ 1800× 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
25 |
|
Φ 2200× 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
33 |
|
Φ 2200× 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
53.8 |
